Power Module
Power Module
Powers up to 4 edelkrone devices with a single V-Mount or Gold Mount battery.
Watch Video
Tech Specs
Gold Mount
V-Mount
Power Module for Gold Mount Batteries, (Battery NOT included), 5 x power cables, Cold Shoe mount accessories, Velcro cable organizers, 2 mm Allen key
Power Module for V-Mount Batteries, (Battery NOT included), 5 x power cables, Cold Shoe mount accessories, Velcro cable organizers, 2 mm Allen key
4.7 x 3.01 x 1.33 in (119.5 x 76.5 x 34 mm) excluding button dimensions
3.3 x 2.53 x 1.33 in (84 x 64.5 x 34 mm) actual size & buttons are not included
215 gr
170 gr
All four DC outputs are standard positive polarity jacks. These plugs are directly connected to the battery terminals and provide the same voltage as the Gold Mount which is ideally between 12V and 16.8V.
All four DC outputs are standard positive polarity jacks. These plugs are directly connected to the battery terminals and provide the same voltage as the V-Mount which is ideally between 12V and 16.8V.
Includes a D-Tap output (D-Tap cables are not included)
Includes a D-Tap output (D-Tap cables are not included)
DC to DC cables; x4 1.30 m cable, x1 1.5 m cable
DC to DC cables; x4 1.30 m cable, x1 1.5 m cable
Powerful features for an effective workflow

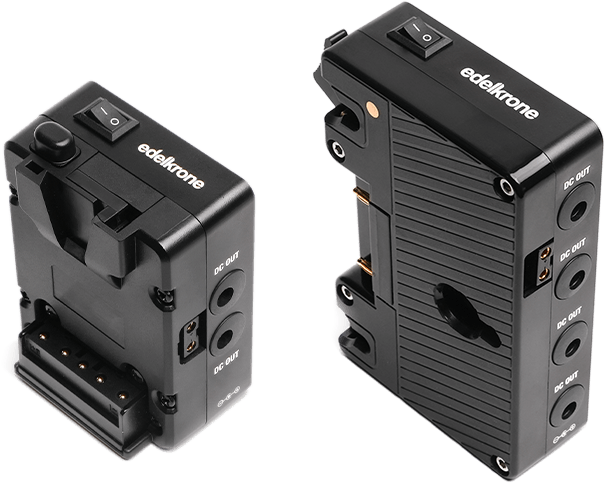

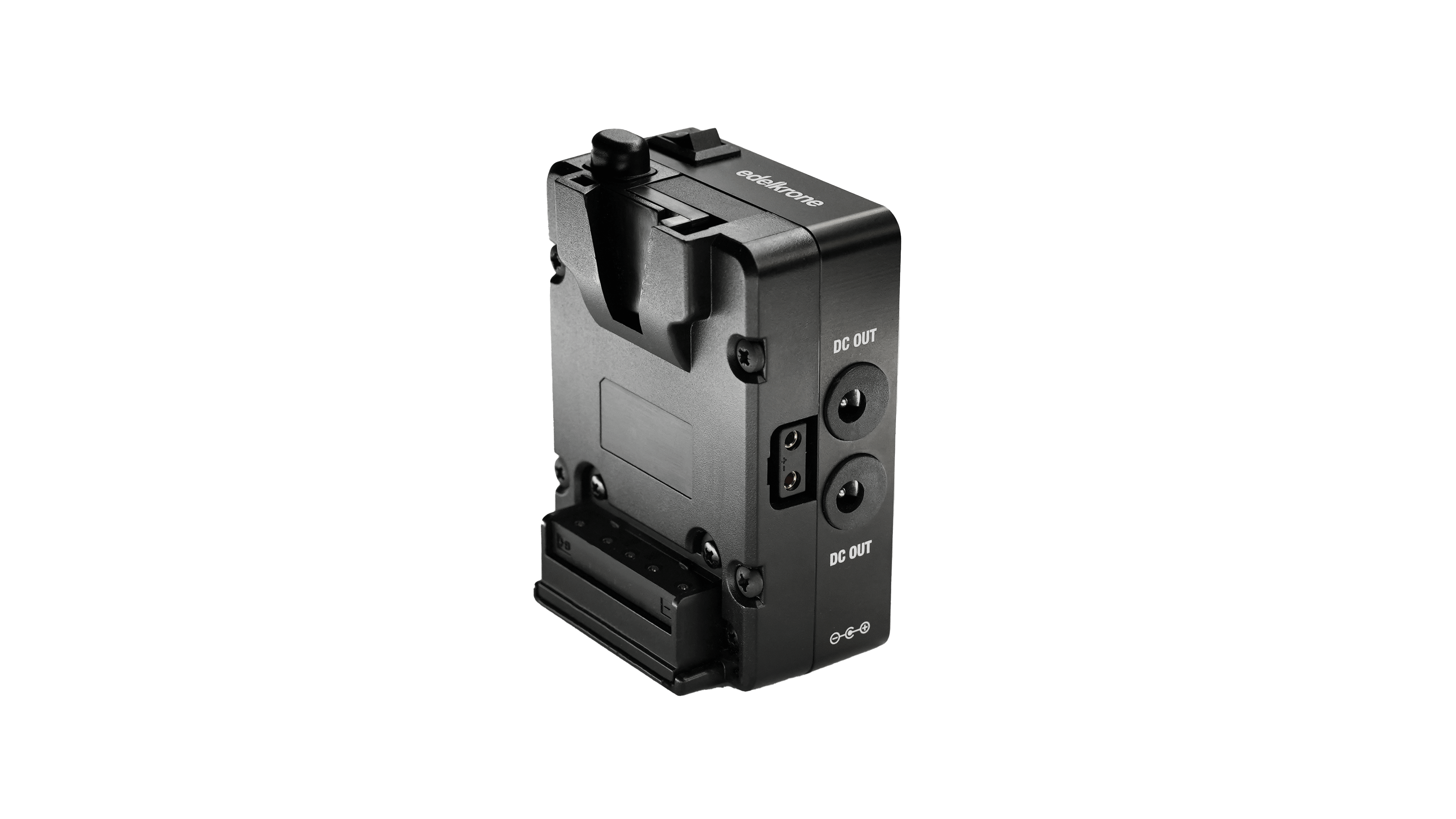

V-Mount & Gold Mount options

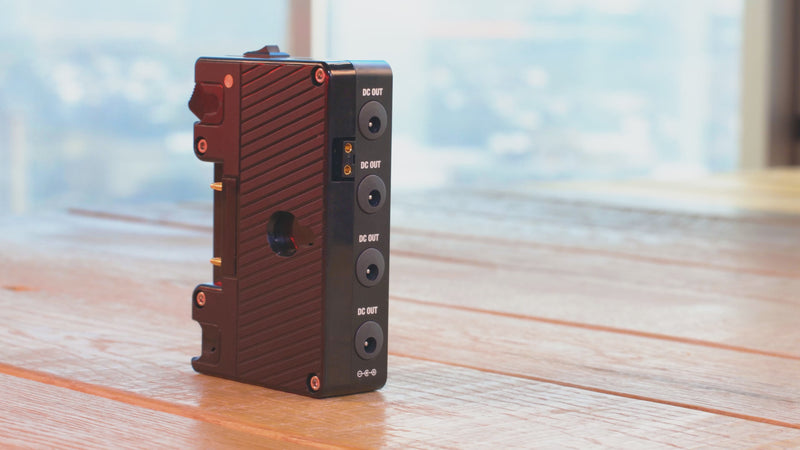

Power Module splits a V-Mount or Gold Mount battery output to four separate DC jacks. With the Power Module and DC to DC cables (x5 cables included in box), you can power up your entire edelkrone setup with a single, long-lasting battery. Batteries NOT included.

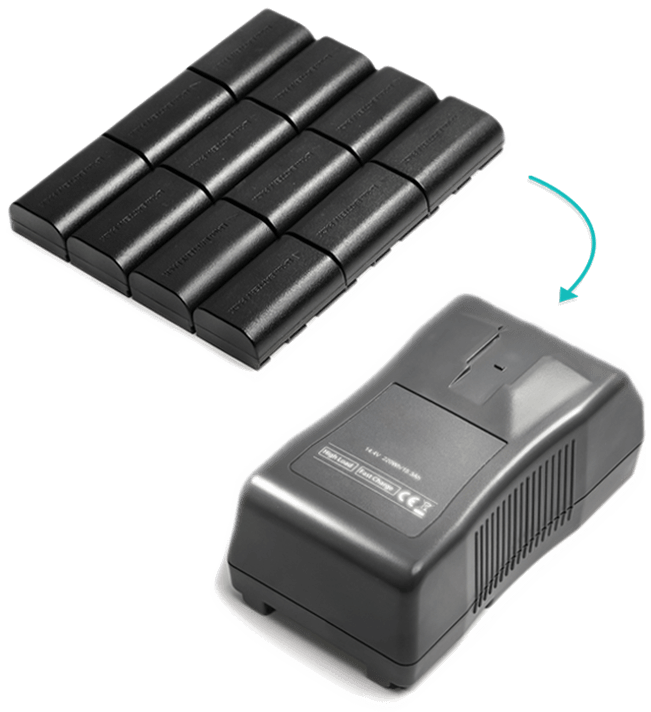

One, instead of a dozen!
Power Module reduces battery and charger maintenance by dramatically decreasing the number of standard battery swaps. Thanks to the high power capacity of V-Mount and Gold Mount batteries, you can shoot longer and achieve uninterrupted productions.

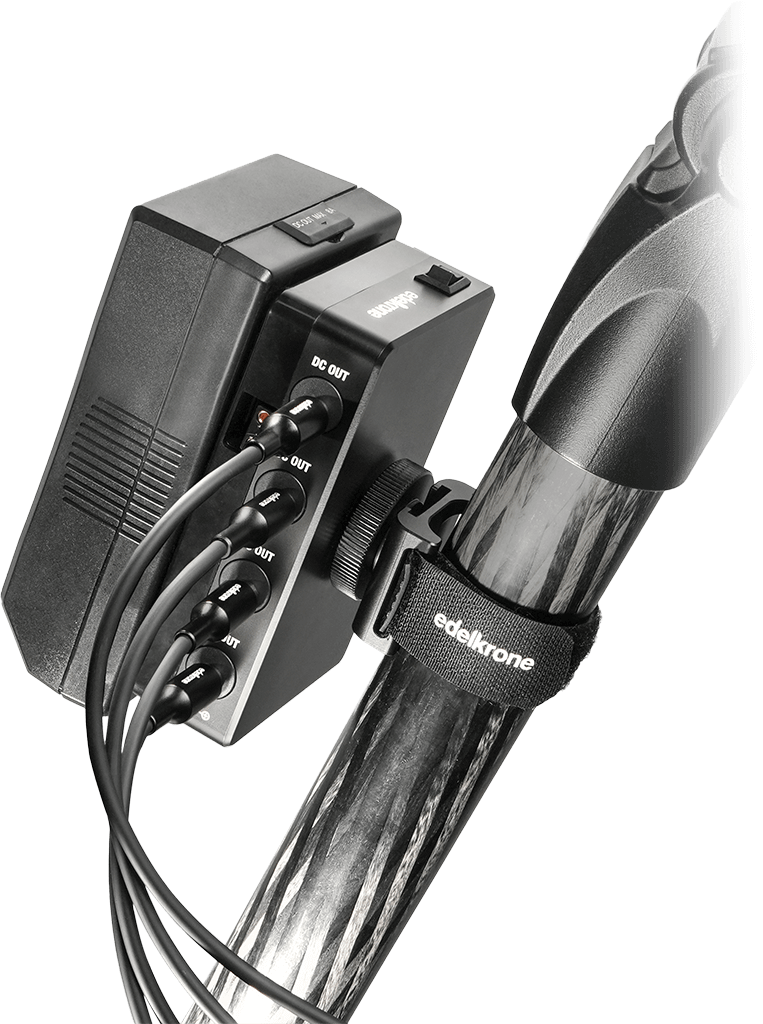

Gripping accessories included

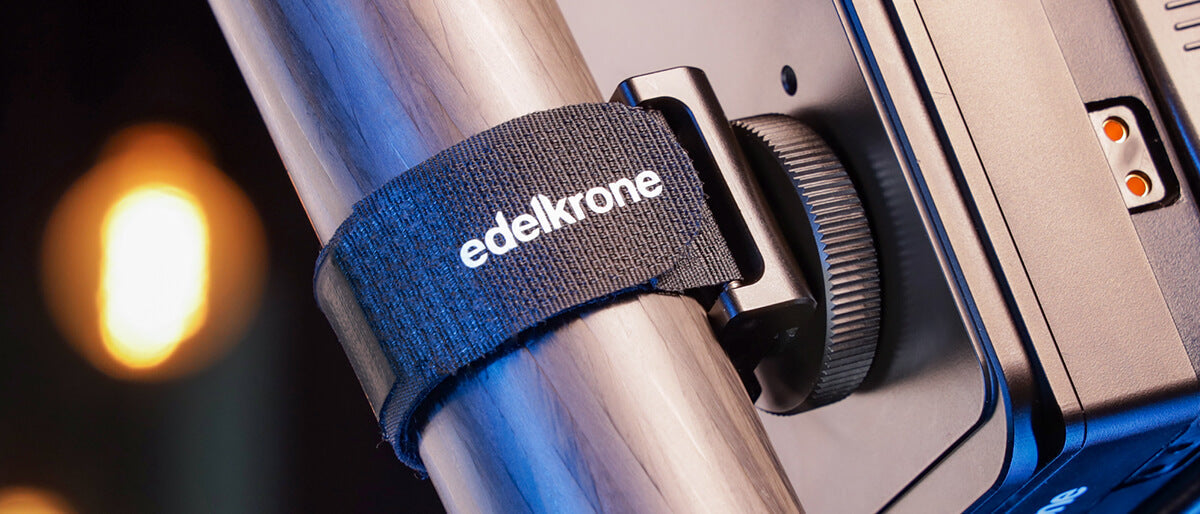

Effortlessly attach your Power Module to a tripod via the cold-shoe on the hook & loop fastener included.
Works great with edelkrone motion control ecosystem
Easily power each edelkrone motion control combination, such as JibONE, Pan Module and HeadPLUS, by a single power source.
Power Module
